Phonons (periodic)

[2]:
from ase.build import bulk
from weas_widget import WeasWidget

from janus_core.calculations.phonons import Phonons

Prepare for phonon calculations on salt

[3]:
NaCl = bulk("NaCl", "rocksalt", a=5.63, cubic=True)
v=WeasWidget()
v.from_ase(NaCl)
v.avr.model_style = 1
v.avr.show_hydrogen_bonds = True
v
[3]:

Note: Set filter_func = None for geometry optimization via minimize_kwargs, so cell is fixed

[4]:
phonons_mace = Phonons(
    struct=NaCl.copy(),
    arch="mace_mp",
    device="cpu",
    model_path="small",
    calc_kwargs={"default_dtype": "float64"},
    supercell=[2, 2, 2],
    displacement=0.01,
    temp_step=10.0,
    temp_min=0.0,
    temp_max=1000.0,
    minimize=False,
    force_consts_to_hdf5=True,
    plot_to_file=True,
    symmetrize=False,
    write_full=True,
    minimize_kwargs={"filter_func": None},
    write_results=True,
)
/home/runner/work/janus-core/janus-core/.venv/lib/python3.12/site-packages/e3nn/o3/_wigner.py:10: UserWarning: Environment variable TORCH_FORCE_NO_WEIGHTS_ONLY_LOAD detected, since the`weights_only` argument was not explicitly passed to `torch.load`, forcing weights_only=False.
  _Jd, _W3j_flat, _W3j_indices = torch.load(os.path.join(os.path.dirname(__file__), 'constants.pt'))
cuequivariance or cuequivariance_torch is not available. Cuequivariance acceleration will be disabled.
Using Materials Project MACE for MACECalculator with /home/runner/.cache/mace/20231210mace128L0_energy_epoch249model
Using float64 for MACECalculator, which is slower but more accurate. Recommended for geometry optimization.
/home/runner/work/janus-core/janus-core/.venv/lib/python3.12/site-packages/mace/calculators/mace.py:139: UserWarning: Environment variable TORCH_FORCE_NO_WEIGHTS_ONLY_LOAD detected, since the`weights_only` argument was not explicitly passed to `torch.load`, forcing weights_only=False.
  torch.load(f=model_path, map_location=device)

Optimize structure and calculate force constants using phonopy.

This will save phonopy to Cl4Na4-phonopy.yml, and additionally save force constants to Cl4Na4-force_constants.hdf5:

[5]:
phonons_mace.calc_force_constants()

Check cell parameters have not been changed by optimization:

[6]:
print(phonons_mace.struct.cell.cellpar())
[ 5.63  5.63  5.63 90.   90.   90.  ]

Calculate and plot band structure, writing results to Cl4Na4-auto_bands.yml, and saving the figure as Cl4Na4-auto_bands.svg:

[7]:
phonons_mace.calc_bands(write_bands=True)
/home/runner/work/janus-core/janus-core/.venv/lib/python3.12/site-packages/seekpath/hpkot/__init__.py:156: DeprecationWarning: dict interface is deprecated. Use attribute interface instead
  conv_lattice = dataset['std_lattice']

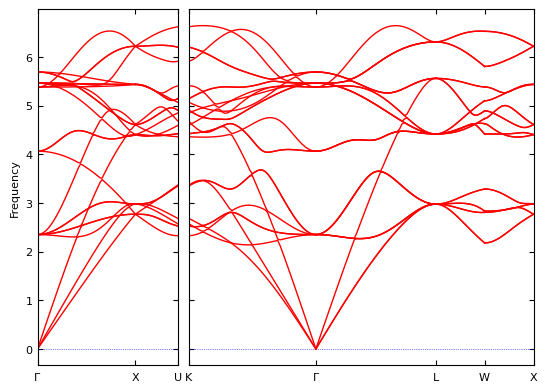

../../_images/tutorials_python_phonons_15_1.png

Calculate thermal properties, saving the heat capacity, enthalpy, and entropy, to Cl4Na4-thermal.dat:

[8]:
phonons_mace.calc_thermal_props(write_thermal=True)

Phonon calcualtions with optimization of cell

The same calculations can be run with cell lengths, but not angles, optimized.

Note: Set "filter_kwargs" = {"hydrostatic_strain": True} for geometry optimization via minimize_kwargs, so cell angles are fixed, but lengths can change

[9]:
phonons_mace_lengths_only = Phonons(
    struct=NaCl.copy(),
    arch="mace_mp",
    device="cpu",
    model_path="small",
    calc_kwargs={"default_dtype": "float64"},
    supercell=[2, 2, 2],
    displacement=0.01,
    temp_step=10.0,
    temp_min=0.0,
    temp_max=1000.0,
    minimize=True,
    force_consts_to_hdf5=True,
    plot_to_file=True,
    symmetrize=False,
    write_full=True,
    minimize_kwargs={"filter_kwargs": {"hydrostatic_strain": True}},
    write_results=True,
)
Using Materials Project MACE for MACECalculator with /home/runner/.cache/mace/20231210mace128L0_energy_epoch249model
Using float64 for MACECalculator, which is slower but more accurate. Recommended for geometry optimization.
/home/runner/work/janus-core/janus-core/.venv/lib/python3.12/site-packages/mace/calculators/mace.py:139: UserWarning: Environment variable TORCH_FORCE_NO_WEIGHTS_ONLY_LOAD detected, since the`weights_only` argument was not explicitly passed to `torch.load`, forcing weights_only=False.
  torch.load(f=model_path, map_location=device)
[10]:
phonons_mace_lengths_only.calc_bands(write_bands=True)
       Step     Time          Energy          fmax
LBFGS:    0 17:29:43      -27.030082        0.129748
LBFGS:    1 17:29:43      -27.030795        0.126795
LBFGS:    2 17:29:43      -27.046337        0.004990
/home/runner/work/janus-core/janus-core/.venv/lib/python3.12/site-packages/seekpath/hpkot/__init__.py:156: DeprecationWarning: dict interface is deprecated. Use attribute interface instead
  conv_lattice = dataset['std_lattice']
../../_images/tutorials_python_phonons_21_2.png

Confirm changes to cell lengths:

[11]:
print(phonons_mace_lengths_only.struct.cell.cellpar())
[ 5.68761079  5.68761079  5.68761079 90.         90.         90.        ]

Phonon calculations with pressure

Calculations can also be run at a fixed pressure, as well as optmising both the cell lengths and angles.

Note: Set "filter_kwargs" = {"scalar_pressure": x} for geometry optimization via minimize_kwargs to set the pressure. Without setting hydrostatic_strain =  True, both the cell lengths and angles will be optimized

[12]:
phonons_mace_pressure = Phonons(
    struct=NaCl.copy(),
    arch="mace_mp",
    device="cpu",
    model_path="small",
    calc_kwargs={"default_dtype": "float64"},
    supercell=[2, 2, 2],
    displacement=0.01,
    temp_step=10.0,
    temp_min=0.0,
    temp_max=1000.0,
    minimize=True,
    force_consts_to_hdf5=True,
    plot_to_file=True,
    symmetrize=False,
    write_full=True,
    minimize_kwargs={"filter_kwargs": {"scalar_pressure": 0.1}},
    write_results=True,
)
Using Materials Project MACE for MACECalculator with /home/runner/.cache/mace/20231210mace128L0_energy_epoch249model
Using float64 for MACECalculator, which is slower but more accurate. Recommended for geometry optimization.
/home/runner/work/janus-core/janus-core/.venv/lib/python3.12/site-packages/mace/calculators/mace.py:139: UserWarning: Environment variable TORCH_FORCE_NO_WEIGHTS_ONLY_LOAD detected, since the`weights_only` argument was not explicitly passed to `torch.load`, forcing weights_only=False.
  torch.load(f=model_path, map_location=device)
[13]:
phonons_mace_pressure.calc_bands(write_bands=True)
       Step     Time          Energy          fmax
LBFGS:    0 17:29:50      -26.918700        0.115825
LBFGS:    1 17:29:50      -26.919268        0.113180
LBFGS:    2 17:29:50      -26.931573        0.003954
/home/runner/work/janus-core/janus-core/.venv/lib/python3.12/site-packages/seekpath/hpkot/__init__.py:156: DeprecationWarning: dict interface is deprecated. Use attribute interface instead
  conv_lattice = dataset['std_lattice']
../../_images/tutorials_python_phonons_27_2.png

Confirm changes to cell:

[14]:
print(phonons_mace_pressure.struct.cell.cellpar())
[ 5.68122692  5.68122692  5.68122692 90.         90.         90.        ]

Compare band structures for different optimization options and save to files:

[15]:
phonons_mace.write_bands(plot_file="NaCl_mace.svg")
phonons_mace_lengths_only.write_bands(plot_file="NaCl_lengths_only.svg")
phonons_mace_pressure.write_bands(plot_file="NaCl_pressure.svg")
/home/runner/work/janus-core/janus-core/.venv/lib/python3.12/site-packages/seekpath/hpkot/__init__.py:156: DeprecationWarning: dict interface is deprecated. Use attribute interface instead
  conv_lattice = dataset['std_lattice']
/home/runner/work/janus-core/janus-core/.venv/lib/python3.12/site-packages/seekpath/hpkot/__init__.py:156: DeprecationWarning: dict interface is deprecated. Use attribute interface instead
  conv_lattice = dataset['std_lattice']
/home/runner/work/janus-core/janus-core/.venv/lib/python3.12/site-packages/seekpath/hpkot/__init__.py:156: DeprecationWarning: dict interface is deprecated. Use attribute interface instead
  conv_lattice = dataset['std_lattice']

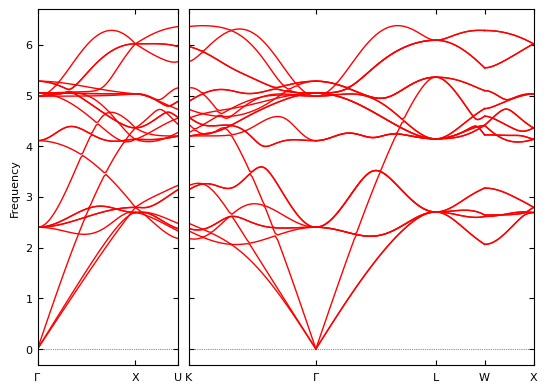

../../_images/tutorials_python_phonons_31_1.png

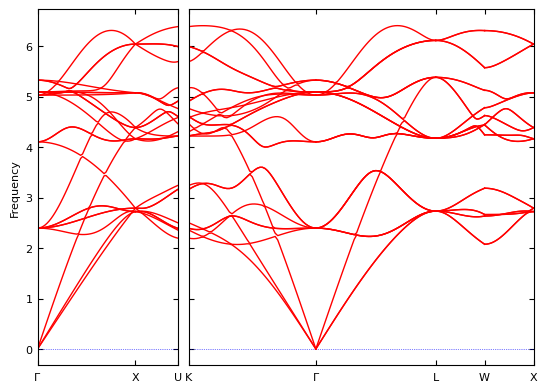

../../_images/tutorials_python_phonons_31_2.png
../../_images/tutorials_python_phonons_31_3.png

Comparing the band structure from MACE to CHGNet and SevenNet:

Calculate band structure using CHGNet

[16]:
phonons_chgnet = Phonons(
    struct=NaCl.copy(),
    arch="chgnet",
    device="cpu",
    supercell=[2, 2, 2],
    displacement=0.01,
    temp_step=10.0,
    temp_min=0.0,
    temp_max=1000.0,
    minimize=True,
    force_consts_to_hdf5=True,
    plot_to_file=True,
    symmetrize=False,
    write_full=True,
    minimize_kwargs={"filter_func": None},
    write_results=True,
)
CHGNet v0.3.0 initialized with 412,525 parameters
CHGNet will run on cpu
[17]:
phonons_chgnet.calc_bands(write_bands=True)
       Step     Time          Energy          fmax
LBFGS:    0 17:30:13      -29.326620        0.000000
/home/runner/work/janus-core/janus-core/.venv/lib/python3.12/site-packages/seekpath/hpkot/__init__.py:156: DeprecationWarning: dict interface is deprecated. Use attribute interface instead
  conv_lattice = dataset['std_lattice']
../../_images/tutorials_python_phonons_35_2.png

Calculate band structure using SevenNet

[18]:
phonons_sevennet = Phonons(
    struct=NaCl.copy(),
    arch="sevennet",
    device="cpu",
    supercell=[2, 2, 2],
    displacement=0.01,
    temp_step=10.0,
    temp_min=0.0,
    temp_max=1000.0,
    minimize=True,
    force_consts_to_hdf5=True,
    plot_to_file=True,
    symmetrize=False,
    write_full=True,
    minimize_kwargs={"filter_func": None},
    write_results=True,
)
[19]:
phonons_sevennet.calc_bands(write_bands=True)
       Step     Time          Energy          fmax
LBFGS:    0 17:30:22      -27.057369        0.000000
/home/runner/work/janus-core/janus-core/.venv/lib/python3.12/site-packages/seekpath/hpkot/__init__.py:156: DeprecationWarning: dict interface is deprecated. Use attribute interface instead
  conv_lattice = dataset['std_lattice']
../../_images/tutorials_python_phonons_38_2.png

Compare and save plots for each MLIP:

[20]:
phonons_mace.write_bands(plot_file="MACE.svg")
phonons_chgnet.write_bands(plot_file="chgnet.svg")
phonons_sevennet.write_bands(plot_file="sevennet.svg")
/home/runner/work/janus-core/janus-core/.venv/lib/python3.12/site-packages/seekpath/hpkot/__init__.py:156: DeprecationWarning: dict interface is deprecated. Use attribute interface instead
  conv_lattice = dataset['std_lattice']
/home/runner/work/janus-core/janus-core/.venv/lib/python3.12/site-packages/seekpath/hpkot/__init__.py:156: DeprecationWarning: dict interface is deprecated. Use attribute interface instead
  conv_lattice = dataset['std_lattice']
/home/runner/work/janus-core/janus-core/.venv/lib/python3.12/site-packages/seekpath/hpkot/__init__.py:156: DeprecationWarning: dict interface is deprecated. Use attribute interface instead
  conv_lattice = dataset['std_lattice']

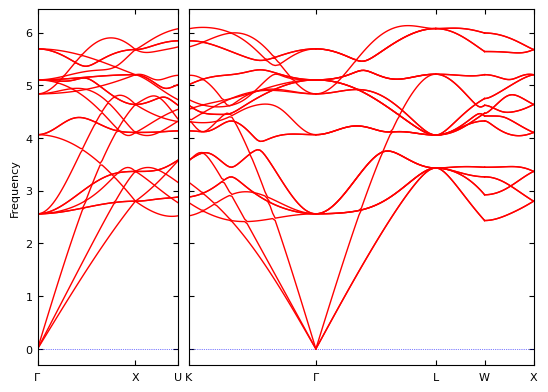

../../_images/tutorials_python_phonons_40_1.png
../../_images/tutorials_python_phonons_40_2.png

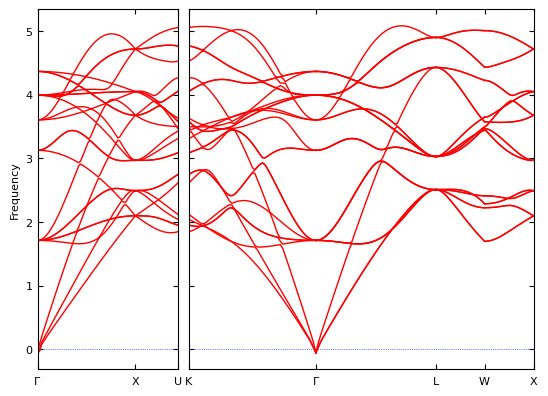

../../_images/tutorials_python_phonons_40_3.png

Note: It may be necessary to reset the default PyTorch dtype if different calculators have been set:

[21]:
import torch
torch.set_default_dtype(torch.float64)

phonons_mace.calc_force_constants()
